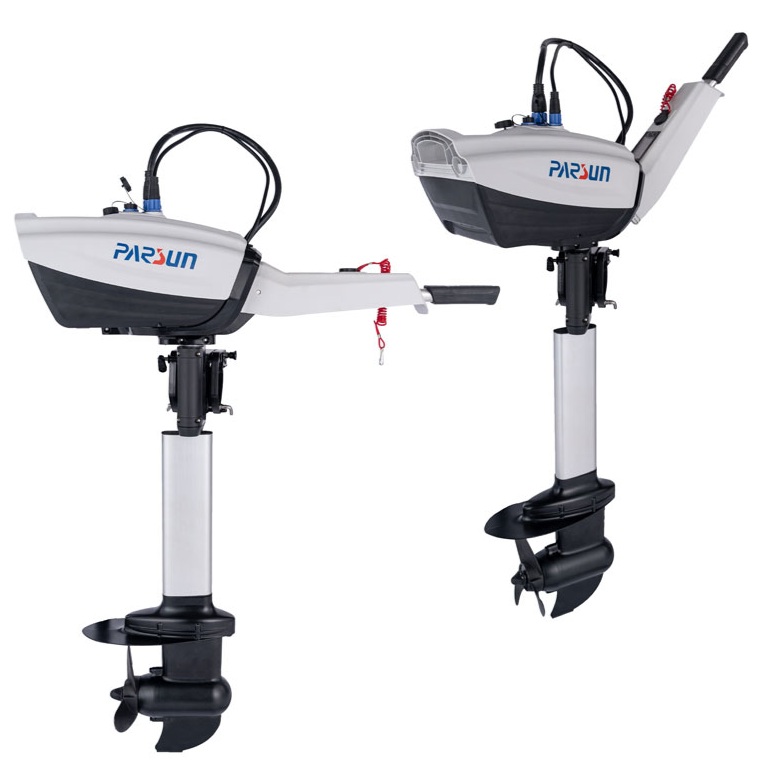

1.2kw back control including tiller handle long shaft
Code:
JOY1.2L
Joy1.2 is a portable 3HP electric outboard motor made for dinghies, fishing boats, and sailboats. It features a 1440Wh large integrated lithium battery for longer range. The electric motor is great for sustainable sailing experience.
Speed & Range
| Power (W) | Speed (mph/kph) | Runtime (hh:mm) | Range (mile/km) |
| 600W | 4.3 / 6.9 | 2:24 | 10.3 / 16.6 |
| 800w | 4.8 / 7.7 | 1:48 | 8.6 / 13.9 |
| 1000w | 5.2 / 8.3 | 1:26 | 7.5 / 12 |
| 1200w | 5.4 / 8.7 | 1:12 | 6.5 / 10.4 |
* This test data is sourced from PARSUN R&D lab, based on a 3 meter inflatable with 2 adults on board and in a calm river. The actual operating speed and range will vary depending on the boat type, load and water conditions.
SPECIFICATIONS
| Power | 1.2 kW (3HP equivalent) |
| Standard Battery | 1440 Wh lithium battery |
| Rated Voltage | 36V |
| Total Weight | 20kg (short) |
| Battery Weight | 9.2kg |
| Standard Charging | 8H |
| Fast Charging | 2H |
| External Battery | Yes |
| Propeller | 3-9.25"*5.1"in |
| Trim/ Tilt Angle | 0°,5°, 10°,15°/ 75° |
| Shaft Length | 17.0in.(S) 21.8in.(L) |
| Steer System | Tiller Handle |
| Motor | PMSM |
| Direct Drive | Yes |
| Maintenance-Free | Yes |
| Range | 1 hr 12 minutes@rated power |
| Water Proof | IP67 |
| Rated RPM (Propeller Speed) | 1750 |
* The weight is measured with the short shaft version.
